SERVO PRESS

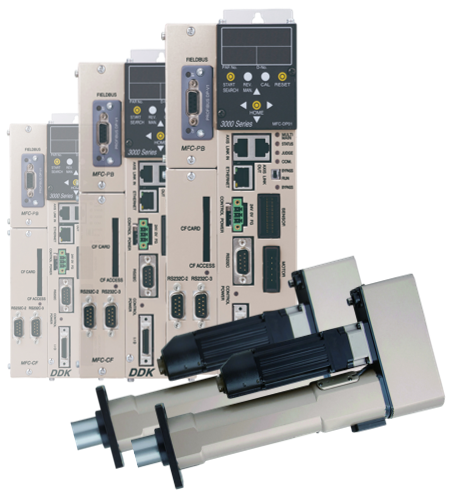

DSP-3000 SERVO PRESS SYSTEM


    SERVO PRESS

DSP-3000 SERVO PRESS SYSTEM

Full Digital Servo Press

A high-performance digital servo press developed based on the advanced technology accumulated through servo nutrunner systems.
Equipped with a built-in load cell for high-precision press-fit control and monitoring. A compact low-profile model is also available as part of the product lineup.

KEY SPECIFICATIONS

LOAD STOPPING ACCURACY (DPT/DPM) FULL SCALE Load 1/2–FULL SCALE Range : 3σ/X[%] within 3%
FULL SCALE Load 1/4–1/2 Range : 3σ/[%] within 4%
LOAD STOPPING ACCURACY (DPS) FULL SCALE Load 1/4–FULL SCALE Range : 3σ/X[%] within 1.5%
LOAD RESOLUTION Approx. 1/4000 of Full Scale Load
LOAD CONTROL RANGE 25%–100% of Full Scale Load
LOAD JUDGMENT RANGE 10%–100% of Full Scale Load
DISTANCE STOPPING ACCURACY -0 ~ +0.02mm
DISTANCE INTERNAL CONTROL UNIT 0.001mm
LOAD CELL ACCURACY / LINEARITY ±1%(fs) / ±0.5%(fs)
OPERATIONAL FACTORS (VARIABLES) Supports control of up to 32 programs (parameters). Programs are stored in EPROM, eliminating the need for battery replacement.
(Option: Up to 128 programs supported when using the expansion unit)
PRESS-FIT METHOD Basic Control Modes : Load Control (Load Method) or Distance Control (Distance Method)
Supports various press-fit system functions including load monitoring, distance monitoring, work check zone monitoring, and band check zone monitoring.

TOOL TYPES

PRESS-FIT (F TYPE) TOOL - Designed for operations requiring instantaneous high load. Generates maximum load by overloading the servo motor. Provides high-speed operation but is not suitable for maintaining load over extended periods.

HOLDING (P TYPE) TOOL - Designed for operations requiring sustained load holding. Engineered to generate maximum load at the servo motor’s rated torque, allowing continuous maximum load output.

DSP-3000 SYSTEM ADVANTAGES

  • Standard Ethernet connectivity for communication with user consoles (PC software) and servers
  • High-speed inter-axis communication based on proprietary communication architecture
  • Equipped with the latest-generation CPU for faster internal processing (control and communication)
  • High-speed transmission of quality data and waveform data / Sequence control supported
  • Supports communication speeds up to 100 Mbps
  • Integrated Multi-Unit and PLC functionality
  • Stores up to 10,000 result history records and 100 waveform history records
  • Internal memory capacity : Quality Data = 12,000 records / Waveform Data = 100 records / Error History = 500 records

DPS Slim Line Servo Press

Standard Type (F-type : Fitting)

Tool ModelMax Rated Load
[kN(ton)]		Max Continuous
Load[kN(ton)]		Maximum Speed
[mm/s]		Standard
Stroke[mm]		Weight
[kg]		Total Length
[mm]		Applicable
Controller		Manufacturable
Stroke[mm]
DPS-051R3-20FB5 (0.51)1.8 (0.18)33320016.4575MFC-S060S300/400/500
DPS-101R3-20FB10 (1.02)2.7 (0.28)22220016.4575MFC-S060S300/400/500
DPS-301R4J-20FB-CE30 (3.06)10.8 (1.1)20020036.5660MFC-S120S300/400/500/600
DPS-501R4J-20FB-CE50 (5.1)13.5 (1.38)16020062760MFC-S120S300/400/500/600
DPS-501R5-20FB50 (5.1)21.5 (2.19)20020074760MFC-S120S300/400/500/600
DPS-801R4J-20FB-CE80 (8.16)18 (1.84)12020098855MFC-S120S300/400/500/600
DPS-102R5-20FB100 (10.2)32 (3.26)133200110855MFC-S120S300/400/500/600
DPS-202R5-20FB200 (20.39)73 (7.44)1202002181030MFC-GSC*1300/400/500/600

*1 Please contact us.

High Power Type (P-Type : Bonding)

Tool ModelMax Rated Load
[kN(ton)]		Max Continuous
Load[kN(ton)]		Maximum Speed
[mm/s]		Standard
Stroke[mm]		Weight
[kg]		Total Length
[mm]		Applicable
Controller		Manufacturable
Stroke[mm]
DPS-051R3-20PB5 (0.51)5 (0.51)8820017575MFC-S060S300/400/500
DPS-101R4J-20PB-CE10 (1.02)10 (1.02)20020021575MFC-S120S300/400/500
DPS-301R4J-20PB-CE30 (3.06)30 (3.06)6620038660MFC-S120S300/400/500/600
DPS-501R5-20PB50 (5.1)50 (5.1)5320079760MFC-S120S300/400/500/600
DPS-801R5-20PB80 (8.16)80 (8.16)40200116855MFC-S120S300/400/500/600
DPS-102R5-20PB100 (10.2)100 (10.2)32200116855MFC-S120S300/400/500/600
DPS-202Y5-20PB200 (20.39)200 (20.39)402002221030MFC-GSC*1300/400/500/600

*1 Please contact us.

DPM MINI PRESS

Tool ModelMax Rated Load
[kN(ton)]		Max Continuous
Load[kN(ton)]		Maximum Speed
[mm/s]		Standard
Stroke[mm]		Weight
[kg]		Total Length
[mm]		Applicable
Controller
DPM-050H1-10P0.5 (0.05)0.49 (0.05)1301004270MFC-S024S
DPM-011H1-10F1 (0.1)0.49 (0.05)1301004270MFC-S024S

DPL LOW PROFILE PRESS

* DPL tool require the detent mechanism.

Tool ModelMax Rated Load
[kN(ton)]		Max Continuous
Load[kN(ton)]		Maximum Speed
[mm/s]		Standard
Stroke[mm]		Weight
[kg]		Total Length
[mm]		Applicable
Controller		Manufacturable
Stroke[mm]
DPL-101R3-20FB10 (1.02)2.6 (0.27)22220019411MFC-S060S300
DPL-301R4J-20FB-CE30 (3.06)10.8 (1.1)25020035479MFC-S120S300
DPL-501R4J-20FB-CE50 (5.1)13.5 (1.38)20020049527MFC-S120S300
DPL-102R5-20FB-CE100 (10.2)32 (3.26)13320096603MFC-S120S300

DPR STRAIGHT PRESS

Tool ModelMax Rated Load
[kN(ton)]		Max Continuous
Load[kN(ton)]		Maximum Speed
[mm/s]		Standard
Stroke[mm]		Weight
[kg]		Total Length
[mm]		Applicable
Controller
DPR-101R3-30FB10 (1.02)2.5 (0.25)238300311005MFC-S060S
DPR-301R4J-30FB-CE30 (3.06)8.3 (0.84)250300521045.5MFC-S120S
DPR-501R4J-30FB-CE50 (5.1)10.4 (1.06)2003001041148MFC-S120S
