MICRO NUTRUNNER

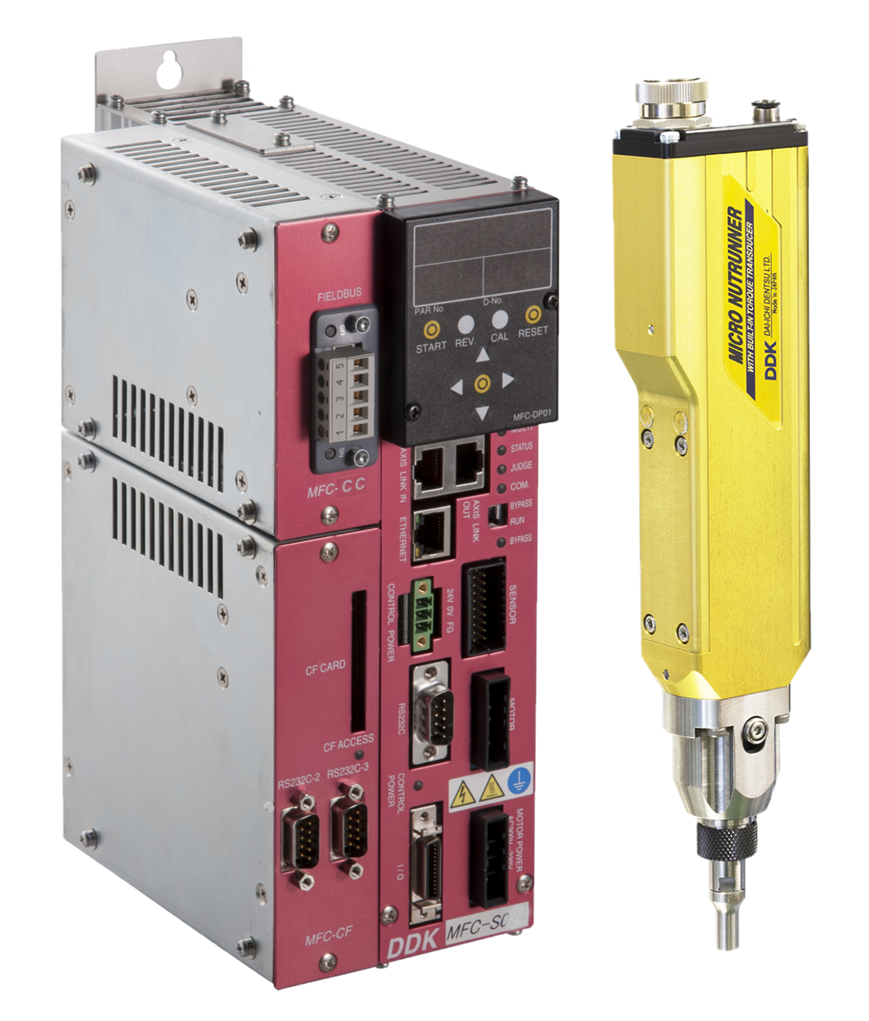

AFC-3000 MICRO NUTRUNNER SYSTEM


    Micro Nutrunner


AFC-3000 AC SERVO MICRO NUTRUNNER SYSTEM

Fastening Evolution For an Ever-Changing Assembly World


An AC servo nutrunner specifically optimized for precision small-screw fastening applications.
Equipped with an integrated torque sensor and a structure resistant to external loads, making it ideal for robotic automation processes.

Core functionality delivers performance equivalent to the AFC-3000 AC Servo Nutrunner system.
A handheld manual operation type is also available as part of the product lineup.

KEY SPECIFICATIONS

TORQUE ACCURACY FULL SCALE TORQUE (×1/2–1) Range : 3σ/X(-)[%] within 3%
FULL SCALE TORQUE (Below ×1/2) Range : 3σ/X(-)[%] within 4%
Torque Resolution = 1/3000 F.S. (3× higher precision compared to AFC-1500)
MINIMUM ANGLE DISPLAY RESOLUTION 0.1°
ANGLE RESOLUTION 4096 pulses/rev
TORQUE TRANSDUCER ACCURACY ±1% (FULL SCALE TORQUE)
TORQUE TRANSDUCER LINEARITY ±0.5%
OPERATIONAL FACTORS (VARIABLES) Supports control of up to 32 programs (parameters). Programs are stored in EPROM, eliminating the need for battery replacement.
FASTENING METHOD Basic Control Modes : Torque Control (Torque Method) or Angle Control (Angle Method)
Supports monitoring and evaluation of torque, angle, 3-stage rate control, time, speed, and total rotation count.

AFC-3000 SYSTEM ADVANTAGES

Compact tool size combined with enhanced speed and torque accuracy.
Equipped with standard Ethernet connectivity for communication with user consoles (PC software) and servers.

  • High-speed inter-axis communication based on proprietary communication architecture
  • Equipped with the latest-generation CPU for faster internal processing (control and communication)
  • High-speed transmission of quality data and waveform data
  • Sequence control supported
  • Supports communication speeds up to 100 Mbps
  • Integrated Multi-Unit and PLC functionality
  • Stores up to 10,000 result history records and 100 waveform history records
  • Internal memory capacity : Quality Data = 12,000 records / Waveform Data = 100 records / Error History = 500 records
  • Supports independent emergency stop signal input even when external STOP signals are connected via Fieldbus

SELF-DIAGNOSTIC FUNCTION

Upon power-up, the tool verification system automatically performs inspection of the following items.

  • Verifies that the connected tool and controller are properly matched and configured
  • Verifies that the electrical performance of the torque transducer meets the required operating specifications
  • Verifies that the torque measurement circuit is operating normally
  • Performs an automatic calibration check before every fastening operation to monitor the condition of the torque transducer, helping prevent abnormal bolt/nut fastening, unit or cable issues, and potential tool damage in advance.



MICRO NUTRUNNER

Model

 Max. Torque

[N.m]

Max. Speed

[rpm]

Weight

[kg]

Overall Length

[mm]

Square Drive

[mm]

Min Pitch

[mm]

Applicable

controller

MFT-080M10-S1

0.8

2220

0.68

206

Hex. 6.35

31

MFC-S008

MFT-160M10-S

1.6

1250

0.68

206

Hex. 6.35

31

MFC-S008

MFT-240M10-S

2.4

800

0.68

206

Hex. 6.35

31

MFC-S008
